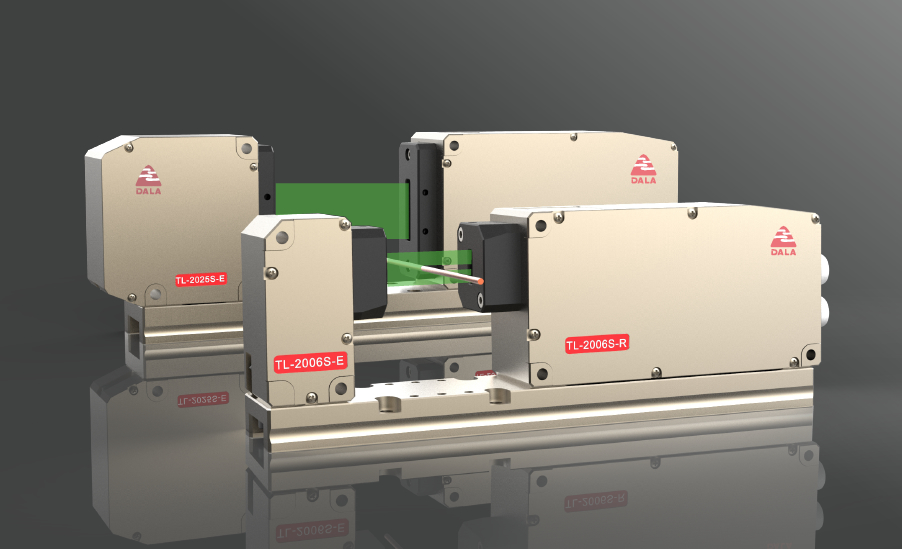

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

Name: Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring
Brand: SCreate Dala Technology Co., Ltd.
SKU: TL-2000
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: Screate DALA

Numero di modello: TL-2000

Termini di pagamento e di spedizione

Quantità di ordine minimo: Negoziabile

Prezzo: negotiable

Imballaggi particolari: imballaggio standard, come richiede il cliente

Tempi di consegna: 7 - 15 giorni lavorativi

Termini di pagamento: T/T, ecc.

Ottieni il miglior prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Single Axis Laser Micrometer Diameter, Lump Neck Measuring Micrometer Diameter


Dati di misura:	grumo e collo o diametro	Applicazione:	filo piatto, filo rotondo
Misurazione:	0,02 ~ 6 mm e 0,2 ~ 25 mm	Ripetibilità:	± 0,03um
Precisione:	± 0,5um	Misurare:	224,63662mm
Fonte di potenza di funzionamento:	24 VDC ± 5%, max. 30W	Comunicazione:	WiFi, RS485 Modbus Rtu

Dati di misura:	grumo e collo o diametro
Applicazione:	filo piatto, filo rotondo
Misurazione:	0,02 ~ 6 mm e 0,2 ~ 25 mm
Ripetibilità:	± 0,03um
Precisione:	± 0,5um
Misurare:	224,63662mm
Fonte di potenza di funzionamento:	24 VDC ± 5%, max. 30W
Comunicazione:	WiFi, RS485 Modbus Rtu

Descrizione

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring

High Impact Resistance,Strong adaptability to temperature change

Unique mechanical design enables the device with an impact resistance of 10G/6ms and vibration resistance of 10-55Hz/1.5mm in XYZ for 2 hours.

Individual temperature compensation technology enables the device measurement results not to be afected by temperature change*.

*The measurement diameter change <0.00lmm when temperature change is 40'℃ if the object diameter is 10mm.

Measurement is accurate even if there is water and dust

Thanks to individual optical system and measurement algorithm, the measurement data of TL-2000S Series is still accurate at complex environment.

Environmental adaptability reaches to IP67.Besides,air filter is available to prevent lens front side from contamination ,ensuring measurement data is accurate at various extremely complex environment.

Touch Screen,Computer,Cellphone

DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 2

size

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 3

Flat Wire Single Axis Laser Micrometer Diameter Lump And Neck Measuring 4

Technical Specification

Model	TL-2006S		TL-2025S
Axis	1-axis		1-axis
Sampling frequency	5KHz		10KHz
Measurement range	0.02~6mm		0.2~25mm
Repeatability	±0.03μm⁽¹⁾		±0.1μm⁽²⁾
Measurement accuracy	±0.5μm⁽³⁾		±3μm⁽⁴⁾
Working power	24VDC ± 5%, Max. 30W
Application field	Round wire ,Transparent wire, Flat wire
Measurement data	Round wire, clear wire, flat wire,rod stock, tubing, etc.
Communication port	Default:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP EtherNet,etc.
Electrical port	Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control⁽³⁾
Environmental adaptability	Working Environment	0~50 ℃
	Working Environment	20~85%RH(No condensation)
	Working environmental brightness	Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less
	Vibrating resistance	10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours
	Impact resistance	10G/6ms
Data colletion & analysis	DMS1000 measurement software system,DS14 ZT display and control system
Out-of-tolerance alarm	Support
Transparent mode	Support
Water-proof grade	IP67

NOTE:

(1)Set average time to 0.1s and measure the ±2σvalue of the φ1mm round rod at the measurement area center;

(2)Set average time to 0.1s and measure the ±2σvalue of the φ10mm round rod at the measurement area center;

(3)Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;

(4)Move φ9mm round rod in the measurement area of8*8mm and conduct measurement error;Move φ18mm round rod in the measurement area of4*4mm and conduct measurement error;
